SEPA: A Framework to Describe the Mediating Aspect of Smart Clothing in Body-World Relationships

Stijn Ossevoort * and Miguel Bruns

Eindhoven University of Technology, Eindhoven, the Netherlands

In modern society, where individualism is highly valued, clothing plays a crucial role in demonstrating personal independence and self-image enhancement. With the integration of technology, turning clothing into ‘smart clothing,’ new opportunities arise to extend the functionality of clothing. While current examples of smart clothing designs explore the social context, they often neglect the communicative aspects that define our bodily presence. Our approach is informed by theories on body-world relationships. Following an analysis of 30 exemplary design cases by six smart clothing experts, we propose a framework for the mediating role of smart clothing called SEPA, incorporating Self-awareness, Expression, Perception, and Appearance. By analyzing the iconic wearable Bubelle using the SEPA framework, we demonstrate its potential for researchers and practitioners to explore the unique body-world relationships of smart clothing.

Keywords – Embodiment, Expression, Phenomenology, Smart Clothing, Wearable Technology.

Relevance to Design Practice – This article presents a model that demonstrates the variety of body–world relationships that define the mediating aspect of (smart) clothing. It includes an extensive analysis of an existing piece of smart clothing and a relevant discussion for design researchers.

Citation: Ossevoort, S., & Bruns, M. (2025). SEPA: A framework to describe the mediating aspect of smart clothing in body-world relationships. International Journal of Design, 19(1), 1-20. https://doi.org/10.57698/v19i1.01

Received September 26, 2023; Accepted December 26, 2024; Published April 30, 2025.

Copyright: © 2025 Ossevoort & Bruns. Copyright for this article is retained by the authors, with first publication rights granted to the International Journal of Design. All journal content is open-accessed and allowed to be shared and adapted in accordance with the Creative Commons Attribution 4.0 International (CC BY 4.0) License.

*Corresponding Author: s.h.w.ossevoort@tue.nl

Stijn Ossevoort is a doctoral researcher at the Department of Industrial Design, Eindhoven University of Technology, investigating the mediating role of smart clothing in wearer-environment interactions. He holds an MSc in industrial design engineering from TU Delft and an MA in Design Products from the Royal College of Arts in London. He has lectured at Lucerne University of Applied Sciences and Arts, Avans University Breda, and ETH Zurich, focusing on design management, sustainability, and innovation. His work bridges industry and academia, integrating speculative design, practice-based research, and prototyping to explore emerging technologies. As an innovation consultant, he has developed methodologies for tackling complex future challenges. His research combines design theory, technology, and human experience to advance the understanding of smart clothing systems.

Miguel Bruns is an associate professor at the Department of Industrial Design, Eindhoven University of Technology (TU/e), where he leads the Interactive Matters cluster. He holds an MSc and a PhD in industrial design engineering from TU Delft. He was a visiting researcher at the Center for Design Research of Stanford University, USA, and at the Design Research and Ubiquitous Computing Groups of Aarhus University, Denmark. At TU/e, he held the position of Program Director for the bachelor’s and master’s degree programs in Industrial Design. He is a co-founder of TU/e Innovation Space and the Material Aesthetics Lab. Through design, he researches the interdisciplinary design space, aesthetics, and expressivity of interactive products with programmable material qualities. He has worked on various projects relating to food design, haptics, and shape-changing interfaces, increasingly involving advanced materials.

Introduction

Clothing is an omnipresent, integral part of most cultures. Its prime reason for existence has never been purely functional, as communicative aspects such as status, adornment, and expression have been the main drive for wearing clothes (Dunne et al., 2014; Entwistle, 2000; Ruggerone & Stauss, 2022). In modern society, which highly regards individualism, clothing has successfully contributed to demonstrating personal independence. What we wear provides an ideal canvas to communicate self-image and has a significant impact on the enhancement of the self.

With the integration of technology, new opportunities arise to extend the functionality of clothing. We will employ the term ‘smart clothing’ to refer to the unified integration of technology with the traditional world of clothing. Smart clothing can be described as body-borne ‘smart systems’ capable of sensing and communicating both with the environmental and the wearer’s conditions and stimuli (Cho et al., 2009; Seymour, 2008). This definition excludes portable and prosthetic technological devices and positions smart clothing within the established cultural and social domains of clothing. Existing examples of smart clothing include functionalities such as lights for visibility (Gould, 2003), haptic navigation (Gay et al., 2020), active fall protection (Li, 2020), or the inclusion of biosensors to increase bodily awareness (Liu et al., 2021). Many of these additional functionalities have been designed primarily to enhance safety or quantify biometric data, which may not necessarily address the communicative aspects of clothing that define the bodily presence in our social and natural context. To promote the communicative role of clothing, smart clothing designs should take into account the socially structured and embodied relations that make up our personalities. Whilst various design researchers have addressed the social context of smart clothing, they often neglect the embodiment relationships. For instance, Dunne et al. (2014) discuss the social implications of wearing technology, Buruk et al. (2019) created a framework combining performative, social, and interactive elements for future playful wearables, and Dagan et al. (2019) present a framework to enhance in-person interactions.

Through this work, we explore how researchers and practitioners of smart clothing can incorporate unique body-world relationships into their work. Our research is informed by existing theories of phenomenology, in particular the cultural phenomenology model (Csordas, 2011), which includes the influence of social constraints on our bodies (Entwistle, 2000). We surveyed a panel of six experts who were asked to classify a portfolio of 30 examples of smart clothing. The results were compared with the existing theoretical model of cultural phenomenology, resulting in an extended framework that includes the mediating role of smart clothing. Our framework describes each type of body-world relationship: Self-awareness, Expression, Perception, and Appearance (SEPA). We validate our framework through an analysis of Bubelle (Figure 1), an iconic dress designed by the first author. Over the past decade, various authors have discussed Bubelle from different perspectives in peer-reviewed publications and books. These perspectives allow us to analyze Bubelle beyond its original design intentions, which support a rich discussion of the SEPA framework.

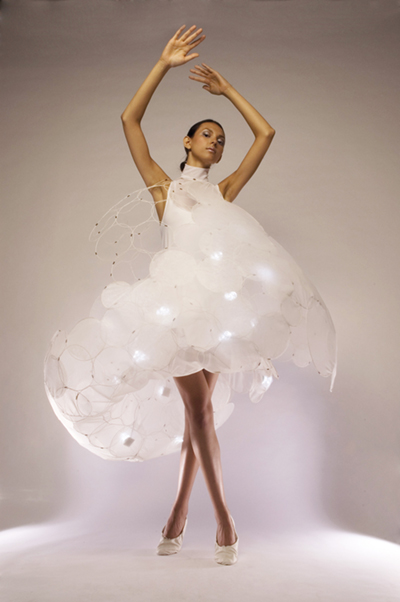

Figure 1. Bubelle, the smart dress that reveals emotions (copyright Royal Philips / Philips Company Archives).

Background

Smart clothing offers the opportunity to evolve the long-standing tradition of clothing in many ways by introducing new materials, creating new production methods, or adding new functionalities. In addition, smart clothing can help develop the meaningful personal relations associated with clothing. To explore these relations, we approach smart clothing from a design as well as a dress theory perspective. Both perspectives emphasize the importance of embodiment, which includes a physical presence in the world and social embedding in a web of practices and purposes (Dourish, 1999; Entwistle, 2000; Hornecker, 2011; Rapp, 2023). We first review the importance of physical presence in the world for the design of (smart) clothing and continue to explain the social-communicative role of clothing. We conclude by presenting the theoretical framework of cultural phenomenology (Csordas, 2011), which explains our body-world relationship from both the physical presence and the social-communicative angle.

Smart Clothing as a Situated Practice

From a phenomenological point of view, we experience the world through our bodies. Clothing works on the body, thereby altering our experience (Entwistle, 2015; Seely, 2012). When feeling comfortable, we may not notice our clothing; it becomes part of our ‘corporal schema’. However, challenging clothes such as high heels or tight trousers remind us of the limits and boundaries of our bodies (Eco, 1986; Gibson, 1966). For a long time, sociologists neglected this phenomenological perspective (Entwistle, 2000; Ruggerone, 2017). While some researchers identified similar issues in smart clothing (Dourish, 2001; Dunne & Smyth, 2007; Hornecker, 2011), most pieces are still developed from a third-person perspective. Theories of embodiment in human-computer interaction (Hannah, 1995; Höök, 2018; Shusterman, 2012) have never been explicitly and thoroughly applied to wearables (Rapp, 2023). To increase the understanding of the ‘view from the inside’ of smart clothing, a first-person perspective is necessary.

There is a great variety of first-person methods in design research that aim to explore the ‘lived experience’ (Gamboa et al., 2024); examples include autoethnography (Ellis et al., 2011), duoethnography (Cifor & Garcia, 2020), autobiographical design (Neustaedter & Sengers, 2012), somaesthetics (Höök, 2018) and embodied ideation (Wilde, 2017).

Some smart clothing projects, in which the design activities play a formative role in the generation of knowledge (Stappers, 2007), explore the lived experience from a design point of view through an autobiographical design method. Examples include projects that focus on the ‘design journey’ (Van Dongen et al., 2019) and on the ‘wearable experience’ (Cochrane et al., 2022; Mackey et al., 2020). Also, co-design sessions (Bolesnikov et al., 2023; Fairburn, 2016) and soma-based design methods (Höök, 2018) have been used to integrate first-person experiences in the design of smart clothing (Alfaras et al., 2020; Tsaknaki, 2021). Finally, carefully crafted second-person methods, such as elicitation interviews (Prpa, 2020), allow participants to reflect deeply on their first-person experiences, which can make them a valuable tool for accessing first-person perspectives indirectly. An example is a project that explores the influence of smart wearables on the user-environment context (Ossevoort & Bruns, 2022).

Although first-person methods are essential for the conduct of phenomenological research, we do not use them in the context of this research project. Instead of conducting phenomenological research, we take a first step by adapting existing phenomenological theories into a design framework that includes the mediating aspects of (smart) clothing.

Theoretical Framework of Cultural Phenomenology

Postphenomenology can be a useful approach to understand the mediating aspect of smart clothing from a first-person point of view. According to Ihde (1990, 1979), technology mediates human-world relations in a variety of ways. These relationships partly explain the mediating role of smart clothing. In particular, Ihde explained that ‘embodiment relation’ as a technological object becomes a symbiotic extension of the first person’s embodiedness. However, such an inquiry does not necessarily consider the complex, interwoven modalities of wearables, nor does it address a perspective that attempts to look at smart clothing from the experience of wearing a garment. This is why Rapp (2023) introduces a new kind of human-technology-world relationship, the ‘extension relation.’ By introducing this new type of relation, he points out that ‘wearables may extend the intentionality itself, increasing the human opportunities for bodily and consciously appraising the world, as well as for acting in this world.’

Although the ‘extension relation’ highlights the need for developing smart clothing that takes the experience of wearing a garment into account, it does not cover the cultural complexity of clothing and the ability of the wearer to reconfigure the meaning of the object as authored by the maker (Entwistle, 2015). The theoretical analysis of Csordas (1994) offers a more suitable view. He expresses embodiment as an indeterminate methodological field defined by perceptual experience and mode of presence and engagement in the world. Csordas (2011) presents three types of body-world relationships based on the disparate but complementary aspects of the relationship between our bodies and the world, according to Merleau-Ponty, Bourdieu, and Foucault. These relationships differ in the situation (‘locus’), way of operating (‘mode’), and direction (‘vector’); see Figure 2 below.

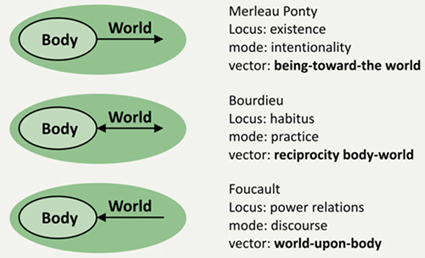

Figure 2. Three types of body-world relationships, according to Csordas (2011).

Being-toward-the World

The concept of body image serves as a statement that our body exists in the world rather than being separate from it. The difference between bare life and raw existence is the presence or absence of a response to environmental stimuli or bodily awareness. Full bodily experience is derived through association with a total awareness of posture in the intersensory world (Merleau-Ponty & Smith, 1962). Our Intentionality characterizes the relationship between our body and the world.

Reciprocity Body-world

This reciprocal relationship is the simultaneous co-production of social reality by the body and the world. To achieve this, one needs to have an active presence in the world. Bourdieu (1990) explains the connection between the body and the world in terms of ‘practical sense’ and ‘practical belief.’ According to Bourdieu, the practical sense is a quasi-bodily involvement in the world, which does not require any representation of the body or the world, nor their relation. Practical belief is the absence of mind, the inability of a person to know what they do completely.

World-upon-body

The pressure of the world upon the body is the main factor that shapes this third relationship. According to Foucault (1972), discursive conditions in society create rules of formation for objects of discourse, such as our bodies. His thoughts are in line with self-discipline and lead to an understanding of one’s body posture. The world of body relations consists of power relationships and active self-constitution.

Cultural Phenomenology and Smart Clothing

Smart clothing can advance the meaningful personal relationships associated with clothing. To explore these relations, researchers and practitioners need to understand smart clothing as a situated bodily practice, which implies physical presence and social embedding in a web of practices and purposes. The framework of cultural phenomenology includes both perspectives and, therefore, provides a suitable base to develop a model that illustrates the variety of relations smart clothing could support. Csordas (2011) proposes his model for anthropological investigations of the body concerning issues such as health, religion, technology, dance, space/place, violence, and sexuality. Although clothing is not an explicit part of his work, it plays a dominant role in our body-world relationships.

The following sections introduce a model that describes the mediating role of clothing in body-world relationships based on the framework of cultural phenomenology. This process unfolds in three steps. First, an expert panel will map a selected portfolio of smart clothing examples based on the origin and direction of their sensory data. Next, these mappings will be annotated according to the framework of cultural phenomenology, forming the foundation for a collective model, the SEPA framework. Finally, the SEPA framework will be validated through a retrospective analysis of an existing piece of smart clothing, the Bubelle dress.

Mapping a Portfolio of Smart Clothing

Taking into account the existing model of cultural phenomenology, we surveyed a panel of six experts who were asked to classify a portfolio of 30 examples of smart clothing. Our portfolio mapping aims to evaluate and extend the existing theories of body-world relationships to include the mediating aspects of smart wearables. By comparing the results with the existing model, we develop an extended framework that includes the mediating role of smart clothing.

Method

We created a portfolio of thirty smart clothing examples from the Association for Computing Machinery (ACM) Digital Library, books on wearable technology, and portfolios of artists and companies that produce wearable technology (see Appendix). In accordance with our definition of smart clothing, all the examples fit within the traditional world of clothing, thereby excluding assistive, portable, and prosthetic devices. Our selection specifically includes smart clothing that uses data retrieved from its direct vicinity. This allows us to focus on the mediating aspect of smart clothing between body and world. We excluded material investigations, intermediate research results, or research equipment to ensure the examples function in a real-life setting. Finally, we favored contemporary examples and avoided examples older than fifteen years, except for two visionary projects by Berzowksa (2005, 2006) that stood the test of time. Our final selection is diverse rather than exhaustive, in line with our research goal to create a model for a wide spectrum of smart clothing.

To achieve a meta-level of abstraction, we focussed on the core functionality of the ‘smart’ addition within each example. In other words: ‘What does the integration of technology add to the functionality of the wearable piece?’ To generate comparable annotations, we described each example in two sentences, explaining the technological features and the intended functionality (see Appendix for a complete overview of the portfolio).

These descriptions were presented to a panel of six female experts: a postdoctoral wearable technology lab manager, a postdoctoral researcher in textile technology, an independent fashion designer, a fashion strategy consultant, a soft systems textile designer, and an associate professor in a fashion design and technology department. They were selected from the authors’ network under the condition that they are familiar with and work at least occasionally with smart clothing. Other qualitative studies involving experts involve a similar number of participants (e.g., Vallgårda et al., 2015).

The panel was asked to map the portfolio according to the origin and direction of their ‘sensory data’ by answering two questions: ‘Where does the data come from?’ and ‘To whom is the information available?’. For each question, the experts were given five options: either exclusively to/from the wearer, mostly to/from the wearer, equally, mostly to/from the environment, or exclusively to/from the environment. The options were rated on a scale from 0 (exclusively to/from the wearer) to 100 (exclusively to/from the environment) in increments of 25.

The Origin and Direction of Sensory Data

Smart clothing, as described in the introduction, is a body-borne ‘smart system’ capable of sensing and communicating both with the environmental and the wearer’s conditions and stimuli. Therefore, each piece of smart clothing captures sensory data and releases information to either the wearers or their environment.

The expert ratings for each smart clothing piece were averaged. Figure 3 shows the results of the averaged values of the complete portfolio in a scatter diagram. In 27 out of 30 cases, the experts reached a general consensus, confirmed by the calculation of the standard deviation, which did not exceed one category (SD < 25). The three exceptions were W20, the Skindress (Local Androids, 2012); W21, the Hugshirt (Cutecircuit, 2020); and W23, the Smoking Jacket (Carswell, 2017), for which the calculated SD were 25 and 35, respectively. Although the expert opinions are not contradictory (SD < 50), these examples are less representative of their clusters. The relatively large variation in results for the Skindress (W20) can be attributed to its unusual description, which is more from the point of view of the dress than the user. To avoid wrong interpretations, we decided to exclude it from further analysis.

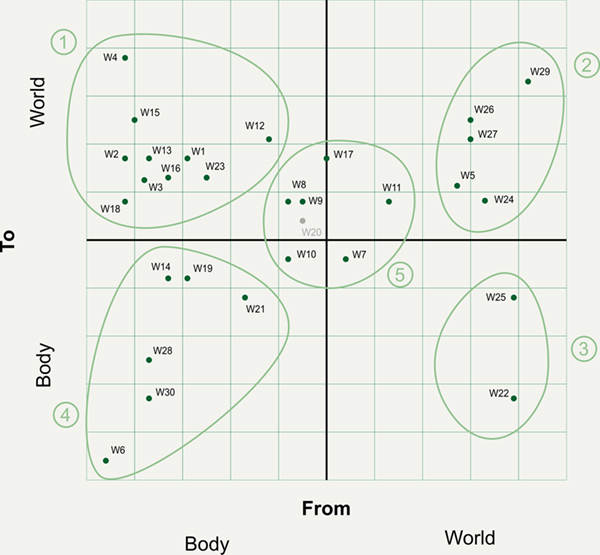

Figure 3. The portfolio of examples, mapped based on the direction of their data/information.

The horizontal axis arranges the projects according to the source from which they retrieve their data, while the vertical axis arranges them according to the availability of their information. The circles represent five distinctive clusters of smart clothing: body to the world (1), world to world (2), world to body (3), body to body (4), and the shared cluster, including all variations in the middle (5).

Body to Body Connections

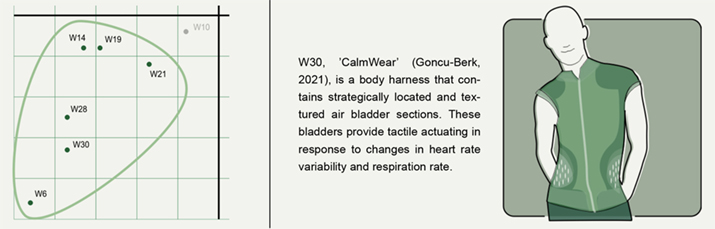

Figure 4. The cluster of body-to-body connections (left) with an example (right).

This cluster (W6, W14, W19, W21, W28, and W30) contains self-tracking technologies in the domain of health and wellness. Although normally associated with the ‘quantified self’ (Manal et al., 2015), not all examples keep the information solely to the wearer or deal with numerically quantifiable information.

Some examples (W6 and W30) in this cluster maintain the wearer’s privacy with respect to bodily information. ‘Yoga Leggings’ (W6 by Wearable X, 2020) is equipped with sensors and actuators to improve posture during exercises. The leggings communicate with the wearer through vibration or an app at a later stage. ‘CalmWear’ (W30 by Goncu-Berk et al., 2021) is an example of smart clothing that enables the wearer to learn how to manage anxiety in private. The garment provides tactile feedback in response to changes in heart rate variability and respiration rate. This enables the wearer to anticipate situations of anxiety through the garment.

Other examples (W19, W28) allow for the sharing of bodily information with the environment. ‘Sacre Coeur’ (W28 by Ossevoort, 2017) is a woolen coat with an ECG sensor that provides bodily data to increase self-awareness. The coat replicates the wearer’s heartbeat by displaying a pulsating and glowing heart on the inside. Although primarily intended for personal feedback, wearers have the option to conceal or reveal their heartbeat. ‘Smart Shawl’ (W19 by Jiang et al., 2020) is a shawl that utilizes light and motion to indicate the wearer’s emotional state. The fabric bubble modules react with vibration or light as the wearer’s arousal level changes. The data is not shared with bystanders.

However, the ‘Nanogami’ garment (W14 by Neidlinger et al., 2018) also shares information with its surroundings. Nanogami is a bio-responsive garment designed to support the wearer’s physical state by informing them of their optimal bodily conditions. The garment features a drone motor located on the sternum that inflates and contracts around the wearer’s torso. The origami fabric, which is dichromatic, inflates and deflates based on breath monitoring to maintain the wearer’s optimal microbiome. This process is visible to the outside world.

In contrast, the ‘Hugshirt’ (W21 by Cutecircuit, 2020) facilitates exclusively shared personal contact. The Hugshirt consists of two wirelessly connected shirts with sensors and actuators. When one shirt is touched in one of the designated areas, the connected shirt responds with a nudge or stroke.

Body to World Connections

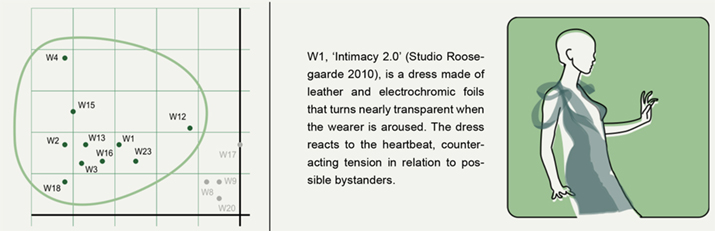

Figure 5. The cluster of body-to-world connections (left) with an example (right).

This cluster of smart clothing examples (W1, W2, W3, W4, W12, W13, W15, W16, W18, and W23) is the most prominent. They collect data from the body and share it with the immediate surroundings. This information can inform bystanders about emotions or physical conditions that may not be visible or are obscured by clothing.

Most examples in this cluster (W1, W2, W3, W12, W13, W15, and W18) share emotional expressions based on various combinations of sensor data such as EEG, galvanic skin response, heart rate, or temperature.

For example, the ‘Biowear Kinetic Accessory’ (W15 by Pailes-Friedman, 2015) includes multiple sensors and actuators to capture inner emotions and display them as a physical pattern visible to others around the back and neck. The ‘Moodsweater’ (W3 by Sensoree, 2014) features galvanic skin response sensors that reveal sensations that can be felt but are typically invisible to onlookers through changing light colors. ‘Breathing Clothes’ (W18 by Ohkubo et al.,2014) is another example of wearable technology that can detect breathing patterns.

‘NEUROTiQ’ (W2 by Sensoree 2014) is a 3D-printed headpiece that features an EEG brain sensor. The sensor maps thoughts and exhibits brain states through colored lights, visualizing deep sleep, meditative, relaxed, alert, and multi-sensory states of the brain. ‘AWElectric’ (W13 by Sensoree, 2015) is a bio-responsive animatronic skin that amplifies the feeling of frisson and animates awe. ‘Intimacy 2.0’ (W1 by Studio Rosengaarde & Wipprecht, 2010) reacts to the wearer’s heartbeat and counteracts any tension or arousal felt in the presence of others by turning transparent. Additionally, the ‘Synapse Dress’ (W12 by Wipprecht, 2014) includes multiple sensors that display various bodily conditions, making normally invisible emotions visible to both the wearer and the environment.

Two examples (W4 and W23) share the physical condition of the wearer with his or her immediate environment. The ‘Open Heart Helmet’ (W4 by Walminck et al., 2014), a bicycle helmet equipped with an LED display that shows the wearer’s heartbeat at the back, allows other road users to understand the physical effort exerted by the cyclist wearing the helmet. The ‘Smoking Jacket’ (W23 by Carswell, 2017) shares information about the wearer’s lung health. The jacket has layers and tubing at the front, shaped like a cross-section of a pair of lungs. These contain air-filter materials that darken to a brownish stain after repeated exposure to smoke. The jacket informs the wearer about the damaging effects of smoking.

Whilst ‘Hint’ (W16 by Howel et al., 2016) shares physical and emotional conditions to indicate stress. Hint is a dynamic sweater with thermochromic sections subtly integrated into the garment’s pattern. These sections change color when the wearer’s skin conductance increases.

World-to-World Connections

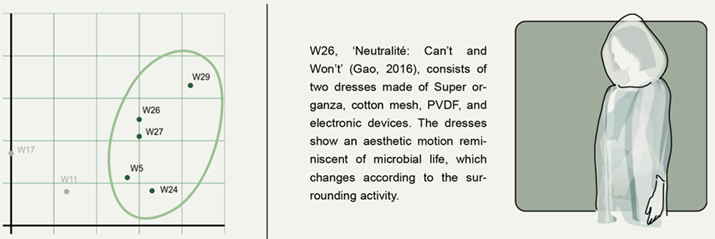

Figure 6. The cluster of the world-to-world connections (left) with an example (right).

This cluster (W5, W24, W26, W27, and W29) includes examples of smart clothing that use clothing as a canvas for external events rather than referring to body conditions. An example of this is the dress ‘Neutralité: Can’t and Won’t’ (W26 by Gao, 2016), which exhibits an aesthetic textile motion reminiscent of microbial life that changes according to the surrounding activity. Also, ‘Flowing Water, Standing Time’ (W27 by Gao, 2019), a collection of robotic clothing, reflects the chromatic spectrum of its environment by moving its fabric material.

Other examples in this cluster (W5, W24, and W29) also incorporate environmental information, some of which may be imperceptible. For example, the ‘Climate Dress’ (W24 by Diffuse Design, 2009) displays the level of CO2 on the surface of the clothing through LEDs. Similarly, ‘Flare’ (W5 by Ossevoort & Bruns, 2023) raises awareness about the importance of natural phenomena. The dress reacts to gusts of wind, which is visible through dandelions embroidered on its surface. The ‘Taiknam Hat’ (W29 by o’Nascimento, 2007, as cited in Ryan, 2009) measures the level of electromagnetic radiation through a sensor and conveys this information through the movement of a set of large feathers mounted on the hat.

World to Body Connections

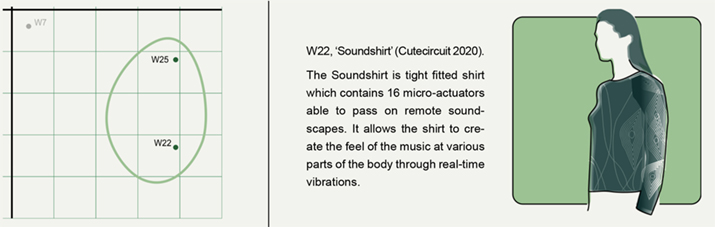

Figure 7. World to body connections (left) with an example (right).

This small cluster showcases two examples of smart clothing, namely the ‘Soundshirt’ (W22 by Cutecircuit, 2020) and the ‘UV Dress’ (W25 by Diffuse Design, 2012), which demonstrate a direct connection between the environment and the body. The ‘Soundshirt’ extends bodily senses into the surrounding environment, similar to a medical prosthesis. At the same time, the ‘UV Dress’ incorporates several apertures that open or close to adjust the UV exposure to the skin.

Shared body-world Connections

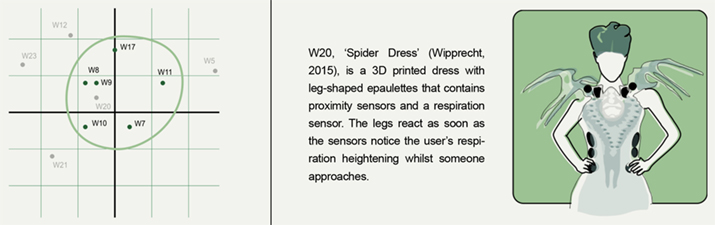

Figure 8. The cluster of shared body to world connections (left) with an example (right).

The cluster at the center of the diagram (W7, W8, W9, W10, W11, and W17) can be considered smart clothing that integrates multiple data sources and provides access to both the wearer and the environment.

For instance, the Spider Dress (W8 by Wipprecht, 2015) is equipped with proximity sensors and a respiration sensor. It responds to both the wearer and the environment and can be utilised to safeguard the wearer and raise awareness of their surroundings.

The ‘Chameleon Mood Scarf’ (W11 by NEFFA, 2015) and the ‘Baroesque Barometric Skirt’ (W17 by Ashford, 2014) combine bodily and environmental data. The Chameleon Mood Scarf contains multiple textile layers that use thermochromic and photoluminescent inks to change its patterns. The device can be used by wearers to increase their self-awareness or to share their mood or environmental conditions with others. The Baroesque Barometric Skirt combines data from three meteorological sensors (temperature, pressure, and altitude) with body temperature data to create intriguing light patterns on its surface.

The other examples (W7, W9, and W10) collect and share personal memories from both the body and the environment. ‘Intimate Memory Garments’ (W9 by Berzowska, 2005) are garments that contain microphones to record messages, which can be played back as desired. ‘SMOKS’ (W10 by Berzowska, 2006) is a pair of suits that capture physical memories, such as traces of human touch, recorded sound, or physical mementos. The ‘Lace Sensor Dress’ (W7 by Hertenberger, 2012) is a collection of cotton dresses equipped with movement sensors that trigger fragments of poems about their history.

Development of the SEPA Framework

The framework of cultural phenomenology explains the complexity of relationships between the body and the world. Clothing acts as a filter between these entities and, therefore, changes their relationships. The framework only considers transformative relationships, namely ‘being toward the world,’ ‘world upon body’, and the reciprocity ‘body-world.’ Adding clothing introduces the reflective relationships ‘body upon body’ and ‘world upon the world.’

The previous mapping illustrates how smart clothes process sensory data. They act as a filter between the body and the world, processing data reflectively or transformatively. Summarizing our analysis, the smart clothing garments that use ‘data from the body’ and present it only to the wearers aim to improve self-knowledge or bodily capacity. In contrast, the garments that present bodily data to a shared group seek confirmation or aim to reveal hidden emotions to others. On the other hand, smart clothing garments that share bodily data exclusively with their environment show openness or a search for empathy. Smart clothing garments that present ‘data from the world’ solely to the wearer aim to improve their perception of the environment. Conversely, those that present data from the world to a shared group aim to increase awareness and highlight the richness of the environment. Finally, smart clothing garments that share data from the world to the world aim to provide information of an aesthetic or informative nature.

Our analysis did not consider the lived experience or contextual use, which is crucial for a postphenomenological inquiry. A comparable first-person perspective is not available for the smart clothing examples in our portfolio. However, most of their descriptions (see Appendix) contain elements of experience that offer an insight into the body-world relationships. To further define these relationships, each category has been briefly annotated. Below, we have used the available and relevant information from our portfolio of examples to annotate each category on lived experiences.

Body upon Body

The examples of smart clothing that reflect bodily condition or function offer a form of self-support. Some show bodily functions, such as Sacre Coeur (W28), “Wearing this coat feels like wearing a live object. The coat has a heart embroidered on the inside, which copies the heartbeat of the wearer. It pulsates and glows but is only visible if the wearer decides to show it” (Ossevoort, 2017). Whilst others actively coach the wearer, such as the Yoga leggings (W6), “The leggings assist the wearers during their yoga sessions to maintain a proper alignment and posture. They contain small vibrating sections that give tactile clues about the parts of the body that are not properly aligned according to the exercise” (Wearable X, 2020) or CalmWear (W30), “CalmWear features tactile actuating through a strategically located and textured air bladder that provides automated and dynamic compression in response to change in heart rate variability and respiration rate as indicators of anxiety” (Goncu-Berk et al., 2021, p. 184).

Being toward the World

The smart clothing examples associated with being toward the world allow the wearers to expose themselves. Some reveal their bodily conditions, such as the Mood sweater (W3), “deliberately designed to exhibit the wearer’s mood to bystanders to support social communication” (Sensoree, 2014), the AWElectric (W13), “AWElectric is a wearable tactile interface that, by animating the physical experience of piloerection caused by awe and inducing it in another person, amplifies the wearer’s sensation as well as making it possible to share it” (Neidlinger et al., 2017, p. 315), the Open Heart Helmet (W4), “…our research explores shared use of heart rate data during exercise with others who are engaged in the same activity” (Walminck et al., 2014, p. 98) or the Smoking Jacket (W23), ”The jacket shows the negative health consequences of smoking cigarettes and openly shares the effect with others” (Carswell, 2017), shares a bodily condition.

Others alert bystanders about the change of bodily condition, such as the Synapse Dress (W12), “If someone moves in too close to the wearer… the wearer’s heart rate, or her attention level will tell the dress to create a super bright glow”(Wipprecht, 2014). Whilst Intimacy 2.0 (W1) is created to shock bystanders, confronting them with otherwise private matter: “…the wearers are able to challenge the control over their body by seeking confrontation”(Studio Roosegaarde & Wipprecht, 2010).

Reciprocity Body–World

The smart clothing examples, which exchange multiple sources of data between the body and the world, provide enhanced connectivity. Some examples share information in a direct, amplified, or confrontational way, such as the Spider Dress (W20), “The dress supports the wearer in unwanted situations and gives her a feeling of security without reducing its feminine, aesthetic aspects. Wearing the dress, increases social awareness and the perception of the body” (Wipprecht, 2015).

Other examples purposefully connect the body and the world. The Baroesque Barometric Skirt (W17), “This garment-device starts a conversation around the connections between the environmental and physiological data of the wearer”(Ashford, 2014, p. 9), gets adorned with information about the body and it environment, whilst SMOKS (W10), “Primarily, they are suits that capture physical memories by representing traces of human touch…” (Berzowksa & Coelho, 2006, p. 539) nurtures long-lasting connections between body and environment.

World upon Body

The smart clothing examples that take information from the world onto the body, relate to perception. The Soundshirt (W22), “… they feel sound waves in specific areas of the body, and within some time the wearers understand the correlation” (Cutecircuit, 2020), provides an immersive sensory experience. The UV Dress (W25), “The dress communicates poetically with its wearer and informs her how to respond to the amount of light exposure” (Diffuse Design, 2012), senses and communicates with the person wearing the dress.

World upon World

The smart clothing examples that reflect information from the world to the world. The work of Gao (2016, 2019) reflects the world into an abstract change of shape or movement. Flowing Water, Standing Time (W27), “The garment… adapts to the slow rhythm of their ever-changing environment. A mirror effect is at play: the garment reacts to what it sees,” (Gao, 2019) reflects its environment, whilst ‘Neutralité: Can’t and Won’t’ (W26), “… which react according to a facial expression recognition system and stop moving as soon as the on-looker begins to emote” ( Gao, 2016) reflects to the expressions of those standing nearby. The Taiknam hat (W) also acts through movement; however, it reacts to an otherwise invisible phenomenon, electromagnetic radiation. “… to materialise the invisible and contribute to our awareness of the increasing level of electromagnetic radiation in our environment” (Ryan, 2009, p. 116).

SEPA Framework

The framework of cultural phenomenology and clusters from our portfolio were used to create the SEPA framework (Figure 9), which describes the mediating role of smart clothing between the body and the world. In the model (smart) clothing takes an active position in the body-world relationships that can therefore be used to analyze its phenomenological role.

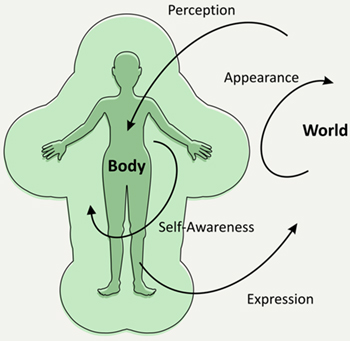

Figure 9. A visual presentation of the SEPA framework.

The SEPA framework includes four directions that represent a transfer of meaning: reflective from the inside (Self-Awareness), transformative from the inside (Expression), transformative from the outside (Perception), and reflective from the outside (Appearance). Any piece of (smart)clothing mediates multiple directions within the model. These directions show parallels with the categories of the framework of cultural phenomenology, with the exception that the ‘reciprocity body-world’ is left out. The pieces of smart clothing in our model are always part of an interchange between body and world. They represent the choices of the individual, are influenced by the structures of the social world, and facilitate embodied activities located within specific temporal and spatial relations (Bourdieu, 1984; Entwistle, 2000; McNay, 1999).

Self-awareness (Body upon Body)

Whether it is due to our bodily restrictions, the lack of comfort, or the pleasure of touch, clothing makes us aware of our bodies. Smart additions to clothing can increase these feelings of epidermic self-awareness. In addition, smart clothing can amplify bodily conditions of which we are normally not aware. A heartbeat can be difficult to notice, and in the turmoil of everyday life, we might not recognize the emotional condition of our own body or are not aware of our bodily pose. Our bodies are bearers of status and distinction but also a container of the self (Bourdieu, 1984). Smart clothing can increase self-awareness and thereby support a person’s individuality and authenticity.

Expression (Being toward the World)

Most smart clothing examples in our portfolio aim to expose the body. In some examples, clothing is a barrier that can be averted by smart technology. Others take advantage of smart technology and materials to show ordinary, not visible conditions. These revelations offer a new way to express oneself emotionally. The framework of cultural phenomenology highlights the importance of intentionality in shaping the relationship between the body and the world (Merleau-Ponty & Smith, 1962). Some pieces of smart clothing support the body as a medium to increase the experience of being in the world. They either trigger emotional responses or expand the haptic experience of the body. According to Entwistle (2000), clothes are a prosthetic extension of the body, and smart clothes can elaborate our existence in the world.

Perception (World upon Body)

In our portfolio of examples, it became apparent that smart functions may offer an extension of one’s senses. Smart clothing can alter the contact surface from the world to the body, allowing space for improved or novel perceptions and experiences. These results are in line with Entwistle’s (2000) observations about Foucault. According to her, Foucault does not consider the lived, experienced, and embodied sensation of wearing clothing. This is true for the notion that within the framework of cultural phenomenology, the body has been described as an object of discourse (Foucault, 1972, 1982), restricted through postures projected by society. What remains of Foucault’s theories (1982) for the dressed body is the influence of fashion as a system of power that shapes the body through the mechanisms of surveillance, discipline, and normalization. Additionally, the physical aspect of clothing shapes our body, gestures, and actions, thereby also limiting our experiences. Smart clothing can overcome these inconveniences by enlarging our field of perception, like what Seely (2012) describes with the term ‘affective fashion,’ clothing that supports the body’s capability to be open to the world.

Appearance (World upon World)

Foucault’s (1982) description of the socially processed body treats the body as a passive ‘entity’ formed by external conventions. Although he does not consider the phenomenological aspects of the body as lived and experienced by individuals (Entwistle, 2000; Seely, 2012), clothing is partly formed through cultural conventions and provides a facade to the world. Smart clothes can anticipate their changing environments. They can engage with the world or live up to its expectations without giving up the personal freedom of the body inside its cocoon.

Retrospective Design Analysis

To demonstrate how the SEPA framework can be used to analyze a piece of smart clothing from a phenomenological and socially structured point of view, we composed a retrospective design analysis. Therefore, we chose Bubelle, an iconic wearable designed by the first author, which has been discussed from multiple perspectives in peer-reviewed publications and books. The plurality of interpretations supports a rich discussion of the SEPA framework. It allows us to analyze Bubelle beyond its original design intentions and indicate room for improvement.

Description

Seventeen years ago, the first author joined a team within Philips Design to explore future areas through experience models. The aim was to identify long-term systemic shifts that could introduce new lifestyles that challenge future business. Areas such as living structures, emotional garments, invasive technology, or microbial kitchens were explored through unique experience models called ‘probes.’

The area of emotional garments had an unanticipated impact. Under the title, SKIN garment, the team explored new ways to communicate with people in close vicinity by using smart clothing as proxies to convey deep feelings that are difficult to express in words. One of the SKIN garments was the interactive dress Bubelle, which reflects the wearer’s bodily or emotional state by projecting ‘blushing’ on its surface.

The Bubelle blush Dress is composed of two layers: an inner layer, which is equipped with sensors and LED projectors, and an outer layer, used as a projection surface. The sensors measure ECG signals and skin conductivity. The corresponding data is used to select an appropriate animated pattern, projected onto the outside layer with the help of clusters of white LED’s and Fresnel lenses (Figure 10, right). The dress displays various patterns, ‘moving,’ ‘pulsating,’ ‘rotating,’ and ‘random’ patterns. The selection of the movement depends on the galvanic skin data, the speed of movement depends on the wearer’s heartbeat. It should be noted that the dress may appear to project distinct colors due to the use of studio lights during video and photoshoot sessions (see Figure 10, left).

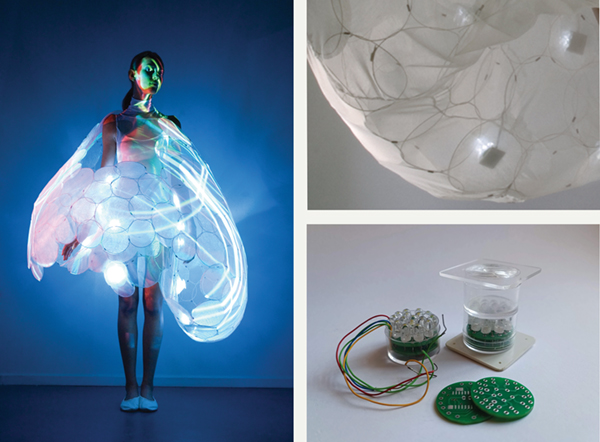

Figure 10. The effect of the studio lights on the dress: The lights applied during the photoshoot introduce subtle colors on the left(copyright Royal Philips / Philips Company Archives), whereas the LED projectors, specifically designed for the dress, only contain a Fresnel lens and a group of white LEDs, images on the right top and bottom.

Analysis

Over the last decade, we have noticed that SKIN garments have been used to illustrate various aspects of design. In particular, Bubelle, the more outstanding design of the two, has been the subject of much discussion. It has been the subject of several peer-reviewed papers, which we have grouped according to their perspectives:

Bubelle to Signify Emotional State

Although its intention, signifying emotional states, is well understood, there are several misinterpretations about its actual function. These are due to the limited information Philips provided on the project; however, these misinterpretations provide some interesting insights. Quinn (2010) writes that Bubelle glows according to the changes in temperature of the wearer’s skin and physical contact. These allow Bubelle to map and record emotional states. He continued to describe that Philips used fashion as a carrier to express the research direction of the company, to develop devices that are responsive to subtle triggers such as sensuality, affection, and sensations.

For Ryan (2014) and Ashford (2016), Bubelle is a prime example of an affective wearable that discerns and visualizes someone’s emotional state. In addition, Ryan highlights the purpose of the garment as a pure, impractical prototype, designed to be photogenic to harvest extensive media coverage.

Bubelle as a Performative Piece

Dalsgaard and Hansen (2008) use Bubelle as an example to demonstrate that perception is also performative. Whilst traditional human-computer interaction focuses on the relationship between the user and the system, they propose that experience is also shaped by the role of the spectator. In their view, Bubelle transforms the wearer from a person wearing clothes to being a performer. Gherghescu (2018) speculates from a performance design background if technologies like Bubelle can be correlated with smart spaces or performances outside the conventional stage space. The dress could amplify the physical presence of a performer and allow the emergence of new special effects.

Bubelle as a Way to Seek Attention

Dagan et al. (2019) consider Bubelle as an opportunity to create attention to oneself with the goal of impressing, surprising, or delighting an audience. Wearables in performance arts (e.g., theatre, dance, and cosplay), and fashion have been used to characterize and present the wearer in a particular way, with the goal to impress, surprise, or delight. Computation elements add an extra layer of novelty, surprise, and sensual pleasure. Mackey et al. (2017) emphasize the entertainment value of Bubelle. She uses it as an example of a custom-made artistic, high-fashion-related, animated garment.

Bubelle as a Second Skin

De Acutis and de Rossi (2017) use Bubelle as an example of ‘clothing as a second skin,’ a modernist utopian style designed for response and display. Also, Bialoskorski et al. (2009) address the relationship with the skin by explaining Bubelle as a bubble-shaped dress illuminated by patterns that change depending on skin contact. They add to the emotional expression the ability to express one’s personality.

Bubelle as a Novel Fabric Material or Form Factor

Mackey et al. (2020) use Bubelle as an example of an exploration of merging textiles and electronics to achieve an animated display. According to them, Bubelle is one of the iconic exemplars of wearables discourses, a material experiment at the intersection of art and design. Neidlinger et al. (2017) regard Bubelle as an improved form factor of sensors that allows them to be embedded in the garment. The dress measures and reacts to human emotions through clothing by colors based on biometrics.

Interpretation of Bubelle in SEPA’s Context

The previous perspectives have been used to analyze Bubelle according to our SEPA framework:

Self-Awareness: The emotional state of the wearer can only be observed in a mirror or indirectly through the reactions of an audience. Therefore, the role of the spectator is incredibly important (Dalsgaard & Hansen, 2008). Using Bubelle effectively in a performance setting will require some direct feedback. However, considering the shape of the dress, it has a massive impact on the wearer’s self-awareness. Imagine the challenge of walking past people, through a door, or performing any mundane task. Its shape determines the way we act, creating an intensive self-awareness but not necessarily for its technology.

Expression: Bubelle is a good example of smart clothing showing ordinary, not visible, bodily conditions. The term affective or emotive wearable (Ashford, 2016; Ryan, 2014) covers the purpose of the dress. The fact that it is a fashion statement, designed for media coverage is in line with its performative expression. Bubelle is an eye-catcher that amplifies the physical presence of the wearer. The shape is in line with the technology, amplifying attention to the person wearing the dress (Dagan et al., 2019).

Perception: Perception can only be determined from a first-person perspective, whilst most papers discuss Bubelle from an external point of view. If Bubelle would indeed function like a second skin, activated by touch (Bialoskorski et al., 2009), it could alter perception. Bubelle could extend our embodiment relationships; however, in its current form, these are only shaped by the limitations of movement through its form.

Appearance: Bubelle does not change according to external events. However, it breaks conventions by showing fluid, changing patterns. Bubelle’s remarkable behavior fits the world of fashion, complementing its unusual shape with technology, which increases its value in entertainment (Mackey et al., 2017).

Most publications on Bubelle address it from a technological, material, or external point of view. Perhaps its entertainment or performance value prevents further discussion from the first-person point of view. Using the SEPA framework to analyze Bubelle, reveals these issues. Bubelle hardly shows a transfer of meaning toward the body (Self-awareness and Perception). The factors that change bodily perception are related to its shape, not necessarily its technology. On the other hand, Bubelle shows a strong transfer of meaning towards the world (Expression and Appearance). This explains the impact of the dress on discussions related to fashion and performance, whilst the intended discussion on whether people should reveal their emotions hardly took place.

Discussion

The integration of technology into clothing presents new opportunities to extend the functionality and communicative aspects of clothing. Smart clothing, defined as body-borne ‘smart systems’, capable of sensing and communicating with the environment and the wearer, has the potential to enhance self-expression and self-awareness. While existing examples of smart clothing have primarily focused on improving safety and quantifying biometric data, the communicative role of clothing has often been disregarded. To address this gap, researchers have explored the social implications of wearing technology and proposed frameworks for future wearable designs. However, these frameworks have mostly been designed from an external, third-person perspective and have not fully considered the embodied relationships associated with clothing. To bridge this gap, we developed the SEPA framework for smart clothing’s mediating role based on the theoretical framework of cultural phenomenology.

With Bubelle as an example, we illustrated that the SEPA framework can be used to explain the mediating aspect of smart clothing in body-world relationships. Douglas (2004) mentioned that the body could be regarded as a combination of a social and a physical body, this observation distinguishes the way we use our body and the way it functions. This dualistic point of view matches the difference between smart clothes as a quantifying biometric device and socially focused smart clothes (Dagan, 2019). However, any theory on ‘multiple bodies’ only reflects the number of aspects that have been taken into consideration. The body is still considered as an object of transformation rather than the existential ground of culture and self (Csordas, 1994).

This marks the difference between our SEPA framework and existing models for smart clothing, which take either the embodiment (Rapp, 2023; Van Dongen et al., 2019) or the social aspects (Buruk et al., 2019; Dagan et al., 2019; Dunne et al., 2014; Møller & Kettley, 2017) into account.

Because culture is grounded in the human body, embodiment can be a starting point to rethink the nature of culture. In our model, smart clothing is regarded as the mediator of our embodied experience and existence. Additional technology can support the evolution of meaningful personal relationships associated with clothing. The role of smart clothing should not be limited to interpersonal communication but must also include its impact on expression, self-awareness, perception, and appearance. The importance of embodied interaction is eminent (Dourish, 2001; Hornecker, 2011), and the SEPA framework offers a way to evaluate embodied relationships for smart clothes. However, to ensure first-person perspectives, innovative design methodologies that go beyond user-centered or participatory design are necessary (Desjardins et al., 2021; Höök et al., 2018).

The SEPA framework indicates new opportunities to investigate other interactive products that mediate our worldview. It can be a starting point to understand the way people change their behavior when driving a car, having a tattoo, or changing parts of their body. When driving a car, it becomes a representation of our body. It changes the way people behave, not only due to the changes in physical presence, which can be seen as extensions of our body, but also the situational pressure affects the way drivers perceive their appearance, which in turn affects their emotional state. Smart additions to cars should consider the mediating aspect of the car, how it mutually affects our bodily state, and the acceptance from outside. On the corporal level, tattoos are a form of body modification that can increase self-awareness by drawing attention to specific body areas. Besides, any form of body modification, whether it is piercings, cosmetic surgery, or the use of prosthetics, can enhance self-awareness by changing the way individuals perceive and interact with their bodies. Smart modifications can provide real-time data about physiological parameters, further increasing self-awareness. It can also serve as a tool for expressing one’s interests, values, or affiliations.

In all these examples, the SEPA framework can serve as a starting point for understanding how interactive products, including smart technologies, influence the way people perceive themselves, express their identities, perceive their surroundings, and engage with the world. Researchers can use this framework to investigate the complex interplay between individuals, technology, and their environment in these contexts.

Although the SEPA framework has several strengths and potential benefits in understanding the relation between individuals, clothing, and their surroundings, it is also important to consider the potential drawbacks and limitations of this model. Therefore, it is important to use the SEPA framework as a tool for analysis, rather than a definitive representation of reality. The SEPA framework simplifies the complex interactions between individuals, smart clothing, and the environment into four broad directions, which may not fully capture the complexity of the interactions. While this simplification can make the model more manageable, it may overlook nuances and intricacies in these interactions. Real-life situations involving smart clothing can be much more multifaceted.

Even though the model acknowledges the influence of social structures on clothing choices, it may not fully account for the vast cultural and contextual variations in how individuals perceive and use smart clothing. Cultural norms, values, and historical factors can significantly impact the meaning and role of clothing, which might not be adequately addressed. Also, there is a lack of temporal consideration. The model mentions ‘specific temporal and spatial relations,’ but it does not delve deeply into the temporal dimension. The dynamic nature of how individuals interact with smart clothing and how these interactions evolve over time might not be adequately captured.

The methodology we used in our research, a ‘retrospective design analysis,’ allows a much deeper and more varied discussion than a regular design analysis. The design of Bubelle left room for speculations and expectations, as it was never published in an academic context. The opinions of peer researchers were vital because, in everyday life, the meaning of clothing depends as much on the intentions of the wearer as the interpretation of the bystanders. The design and the actual piece of clothing play a mediating role; however, the intentions of the wearer need to be included to fully understand the process.

We acknowledge that our methods primarily focus on the positive aspects of smart clothing, such as increasing self-awareness and expression. It might not sufficiently address potential negative aspects or drawbacks of smart clothing, such as privacy concerns, dependence on technology, or the potential for social surveillance. Furthermore, the importance of physical presence and social embedding in the design of smart clothing has been emphasized. Smart clothing is a situated bodily practice, where the physical and social aspects of clothing are integrated. The cultural phenomenology framework provides a suitable base to explore these relationships, as it considers both the bodily experience and the cultural complexity of clothing. However, there is still a need for further research and development in the field of smart clothing. While some projects have explored the first-person perspective and the internal opportunities of smart clothing, there is still a lack of explicit attention to the cultural aspects of wearing clothes. Smart clothing should not only focus on functional issues but also address the social consequences and cultural interfaces associated with clothing.

After all, smart clothing has the potential to enhance the meaningful personal relationships associated with clothing. By considering the SEPA framework, designers can create smart clothing that supports self-identity, a feeling of belonging, and new prospects to portray our self-image. Future research should continue to explore the social and cultural dimensions of smart clothing to fully unleash its potential to transform the way we interact with our bodies and the world.

Conclusion

We present the SEPA framework, which describes four body-world relationships in which smart clothing plays an important mediating role. Self-awareness: smart clothing increases our awareness of the body and smart additions can enhance this awareness further. Expression: smart clothing allows for new forms of emotional expression and expands the body’s experience in the world. Perception: smart clothing can extend our senses, altering our perceptions and creating new experiences. Appearance: smart clothing provides a facade to the world while allowing the body personal freedom and the ability to adapt to changing environments. These relations capture the reflective and transformative interactions between the body and the world mediated by smart clothing. By applying the SEPA framework, researchers and practitioners can explore the unique body-world relationships of smart clothing to support a phenomenological approach.
